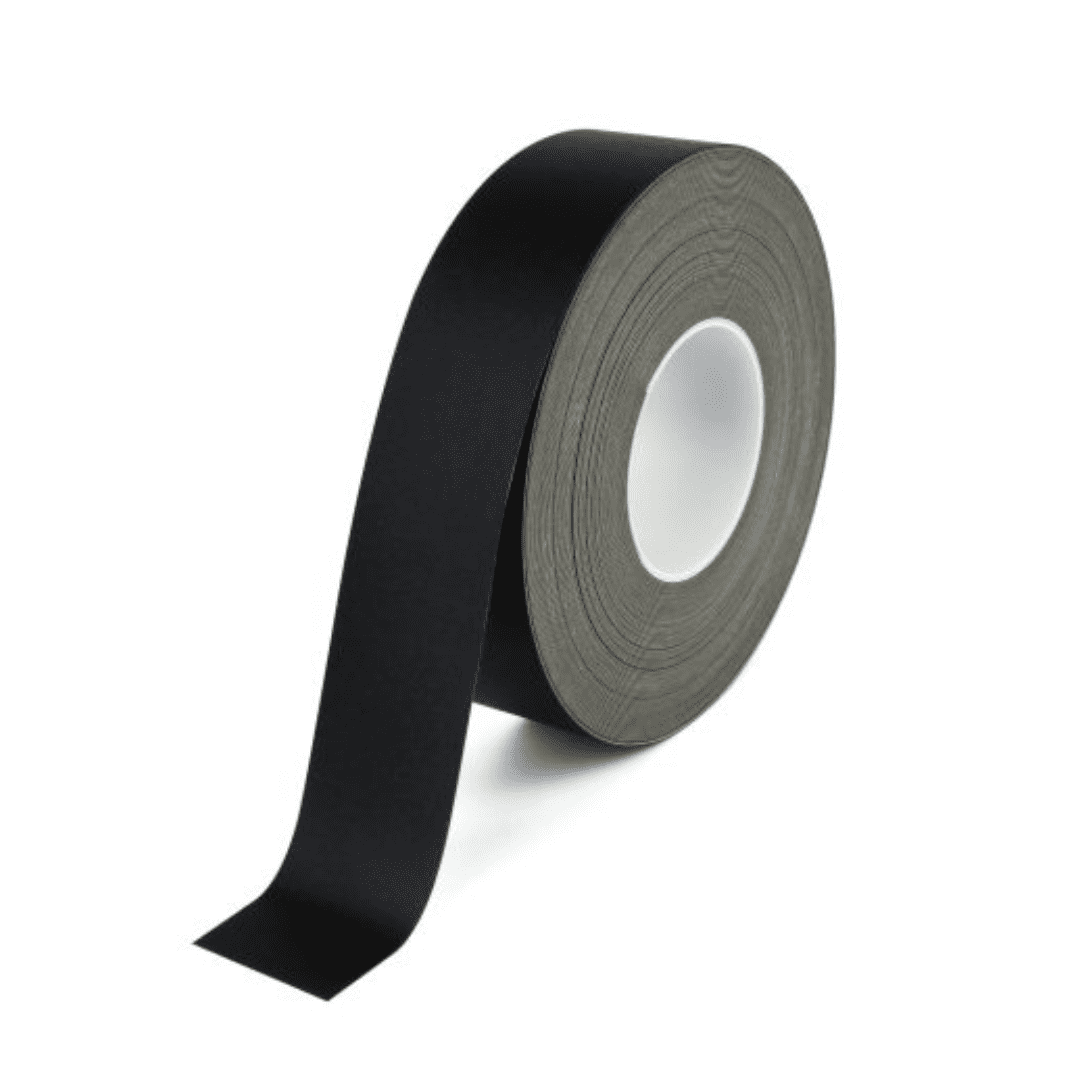

PermaLean Manufacturer

H6905

  • Langlebiges, mageres Markierungsband
  • 570 mu dick
  • Gedruckte Farbgrundschicht
  • Robustes oberes Laminat
  • Rollen und Stanzbreiten bis 1260 mm

ÜBERBLICK

5S Optimisation

5s optimierte Bodenmarkierung

1 Jahr Garantie

Quality

Hochwertige Linienmarkierung

Langlebige Bodenmarkierung

PermaLean is our most durable and slimmest floor marking tape yet! With a total thickness of 570 µm, PermaLean is the world’s slimmest industrial-grade self-adhesive floor tape. Along with PermaStripe (1300 µm) and PermaRoute (960 µm), PermaLean offers a cost-effective range of durable, slim floor tapes, providing better options to a wider audience that fit their needs and budget. The product is extremely robust and offers resellers significant profit margins.

Why PermaLean?

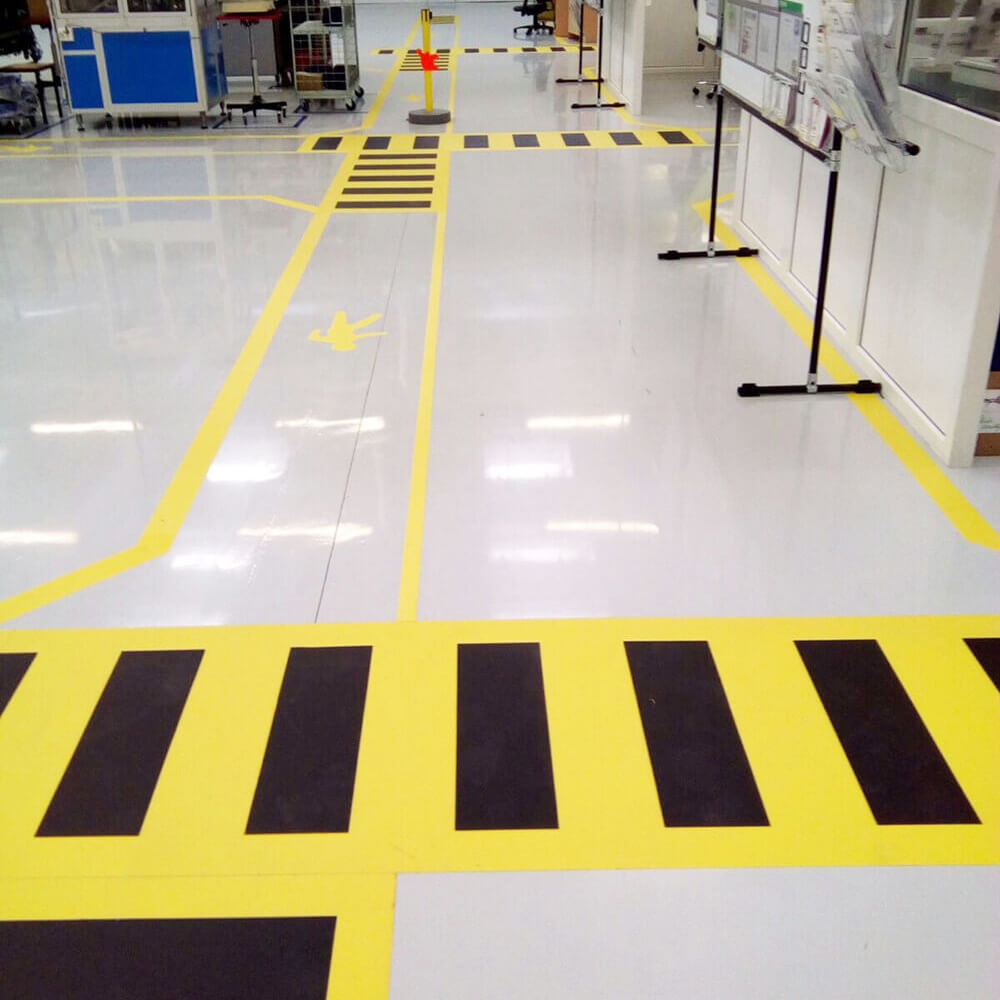

You can create a cost-effective, streamlined floor marking system in your workplace to provide guidance in the form of lines, shapes, letters and numbers in various colors to meet your workplace requirements and 5S requirements.

See H6905 PermaLean colors here.

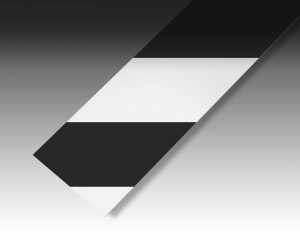

For solid colors, it is manufactured from a single, solid piece of 500 mU thick plastic film. For hazardous chevron colors (black/yellow and red/white), we ensure you receive the best possible hazard warning. We print this on a 250 mU base film and then laminate it with a tough, clear 250 mU top film to guarantee the pattern can never be scratched off!

PermaLean Sizes & Shapes

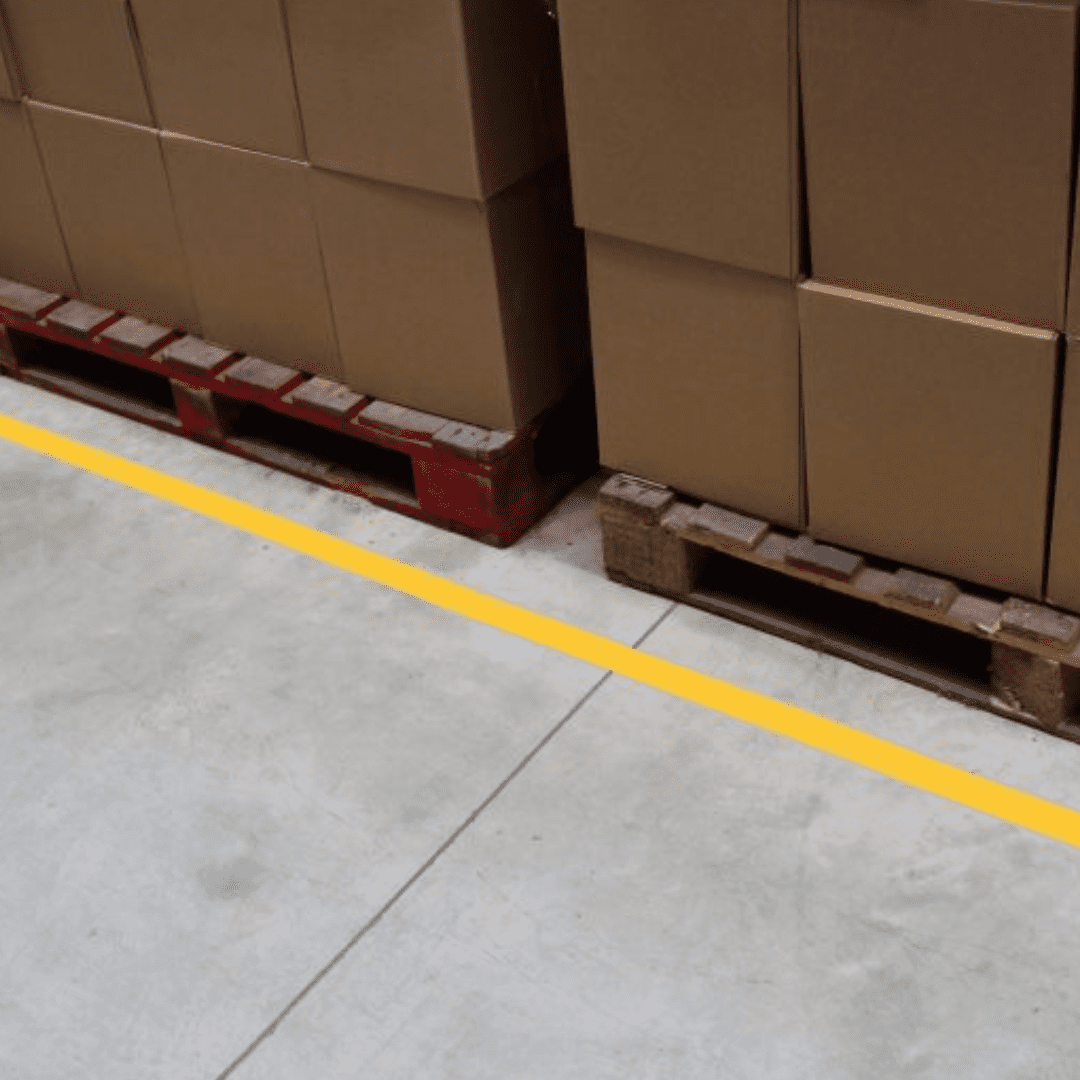

Since PermaLean is manufactured in 1260 mm master rolls, these can be cut into rolls from 15 mm up to a maximum of 1260 mm. Die-cuts can also be produced in any size up to the width of the master roll. View our range of available die-cut designs here.

Our stock range of die-cut H6905 PermaLean designs can be manufactured very quickly, however, custom shapes are also available (minimum order quantities and additional tooling costs are required).

To place an order or request samples, you can contact our sales team via live chat or telephone. Alternatively, fill out the contact form and a member of our team will get back to you as soon as possible.

Banddicke

PermaLean verfügt über eine insgesamt aufgetragene Dicke von 0,62 mm, die für zuverlässige Haltbarkeit entwickelt wurde, ohne die Flexibilität zu beeinträchtigen. Die flache, unauffällige Konstruktion ermöglicht es dem Band, glatt auf Böden und Gehwegen zu liegen, wodurch das Risiko von Kantenablösungen reduziert wird, während gleichzeitig eine starke, dauerhafte Haftung gewährleistet bleibt.
Diese ausgewogene Dicke bietet verlässlichen Rutschschutz in anspruchsvollen Umgebungen und hält das Band dennoch dezent und unaufdringlich—ideal für Bereiche, in denen eine dünnere, langlebige Sicherheitslösung bevorzugt wird.

Custom printing

Custom printing on PermaLean transforms it into more than just a floor marker; it serves as a precise on-site communication tool. With the ability to add text, symbols, or color-coded indicators, it provides quick visual cues that support efficiency and clarity in busy work environments. Frequently used in lean manufacturing, PermaLean can be printed to identify specific zones such as „QUALITY CHECK,“ „PICK-UP AREA,“ or „PART RETURN,“ helping teams stay on top of things and reducing the risk of errors. Its flat, durable construction ensures that custom messages remain visible even in high-traffic areas, making it an ideal solution for workplaces focused on continuous improvement and visual management.

Grip Angle R10 Coefficient of Friction

Bei Heskins steht Sicherheit im Mittelpunkt unserer Mission. Unser PermaLean-Markierungsband wird in kontrollierten Laborumgebungen gründlichen Tests unterzogen, um seine rutschfesten Eigenschaften sicherzustellen. Wir freuen uns, bekannt geben zu können, dass unser PermaLean-Band die Einstufung R10 erreicht hat, was seine hervorragende Leistung als Bodenmarkierungssystemlösung bestätigt, die für eine Vielzahl von Branchen geeignet ist.

PermaLean-Größen und -Formen

Da PermaLean-Markierungsband in 1260-mm-Masterrollen hergestellt wird, können diese dann in Rollen von 15 mm bis maximal 1260 mm geschnitten werden. Stanzungen können auch in jeder Größe bis zur Masterrollenbreite hergestellt werden. Sehen Sie sich hier unser Sortiment an verfügbaren gestanzten Designs an.

Unser Lagersortiment an gestanzten H6905-PermaLean-Designs kann sehr schnell hergestellt werden, aber auch kundenspezifische Formen werden berücksichtigt (Mindestbestellmengen und zusätzliche Werkzeugkosten sind erforderlich).

1-Jahres-Garantie für PermaLean

Die Heskins-Garantie für PermaLean-Bodenband ist bedingt 1 Jahr ab Produktkauf gültig. Garantieansprüche sind nur auf den Ersatz von PermaLean beschränkt. Die Garantie deckt keine Gegenstände ab, die darüber gezogen, geschoben oder geschabt werden, wie z. B. Paletten oder Transportschlitten.

Sie können Muster anfordern, indem Sie das Musteranforderungsformular für PermaLean ausfüllen. (führt Sie zu permastripe.co.uk)

Um eine Bestellung aufzugeben, können Sie unser Verkaufsteam per Live-Chat oder Telefon kontaktieren. Alternativ können Sie das obige Kontaktformular ausfüllen und ein Mitglied unseres Teams wird sich so schnell wie möglich bei Ihnen melden.

Hazard Marking Tape Diagram 3 FR with Angles

VIDEOS

Beschädigte Bereiche mit einem Skalpell entfernen

Maßband auf Länge

BAND AUF LÄNGE ZUSCHNEIDEN

OBERFLÄCHE MIT H3508 IPA-OBERFLÄCHENREINIGER SAUBER MACHEN

KLEBEFOLIE ABZIEHEN

BAND AN ORT AUSRICHTEN

Klebeband mit Rolle aufbringen

H3502 EDGE FIX ANWENDEN

DESIGN

Klicken Sie bitte auf die Bilder um die Maße anzuzeigen.

FORMEN (KLICKEN, UM DIE ABMESSUNGEN ANZUZEIGEN)

L

ZN0027 – 200mm x 200mm

T

ZN0028 – 300mm x 200mm

X

ZN0029 – 300mm x 300mm

KREIS

ZN0035 – 50mm Ø

KREIS

ZN0034 – 90mm Ø

KREIS

ZN0023 – 100mm Ø

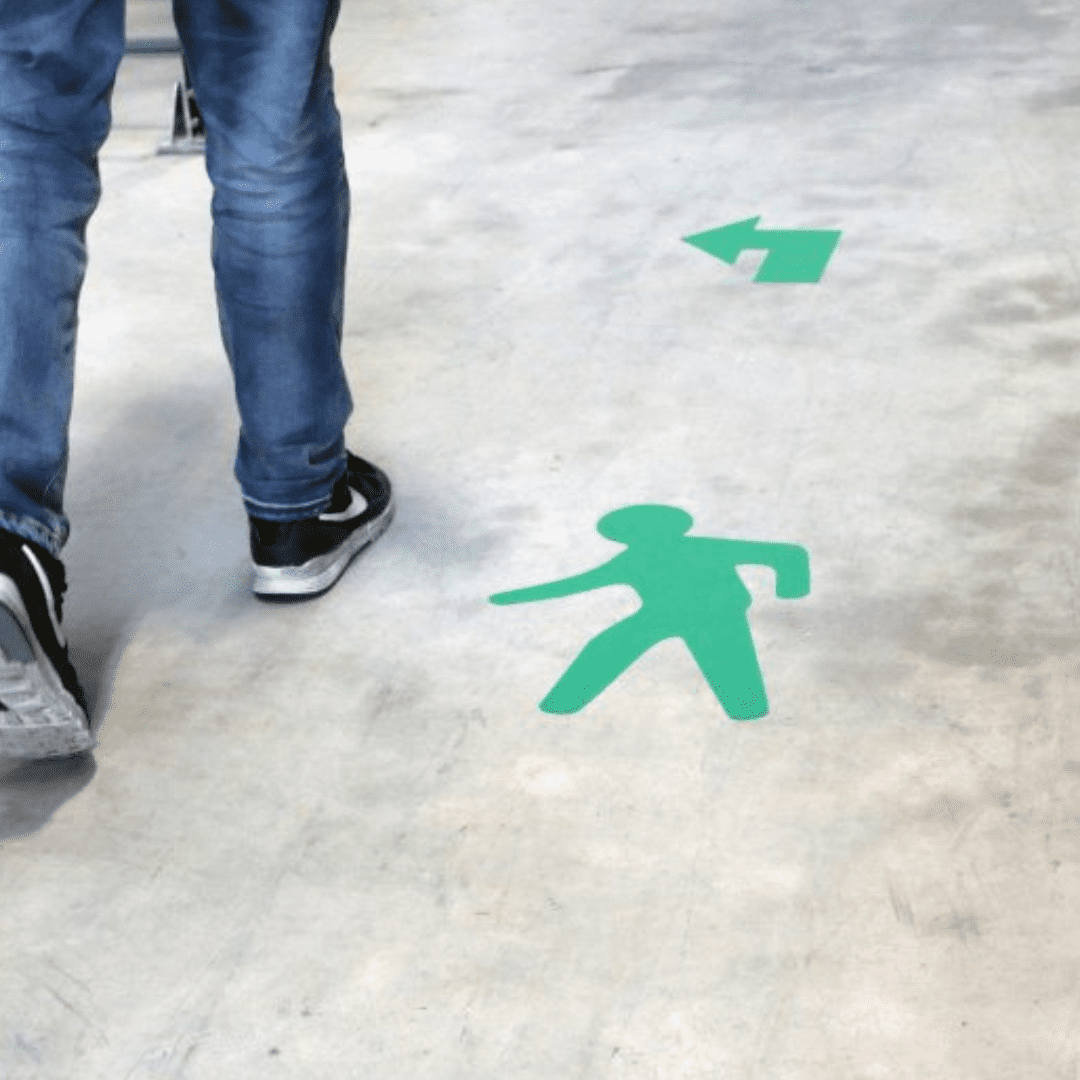

LAUFENDE FIGUR

ZN0051 – 328mm x 500mm

GABELSTAPLER

ZN0038 – 543mm x 500mm

PFEIL (LINKS ODER RECHTS)

ZN0344 – 300mm x 230mm

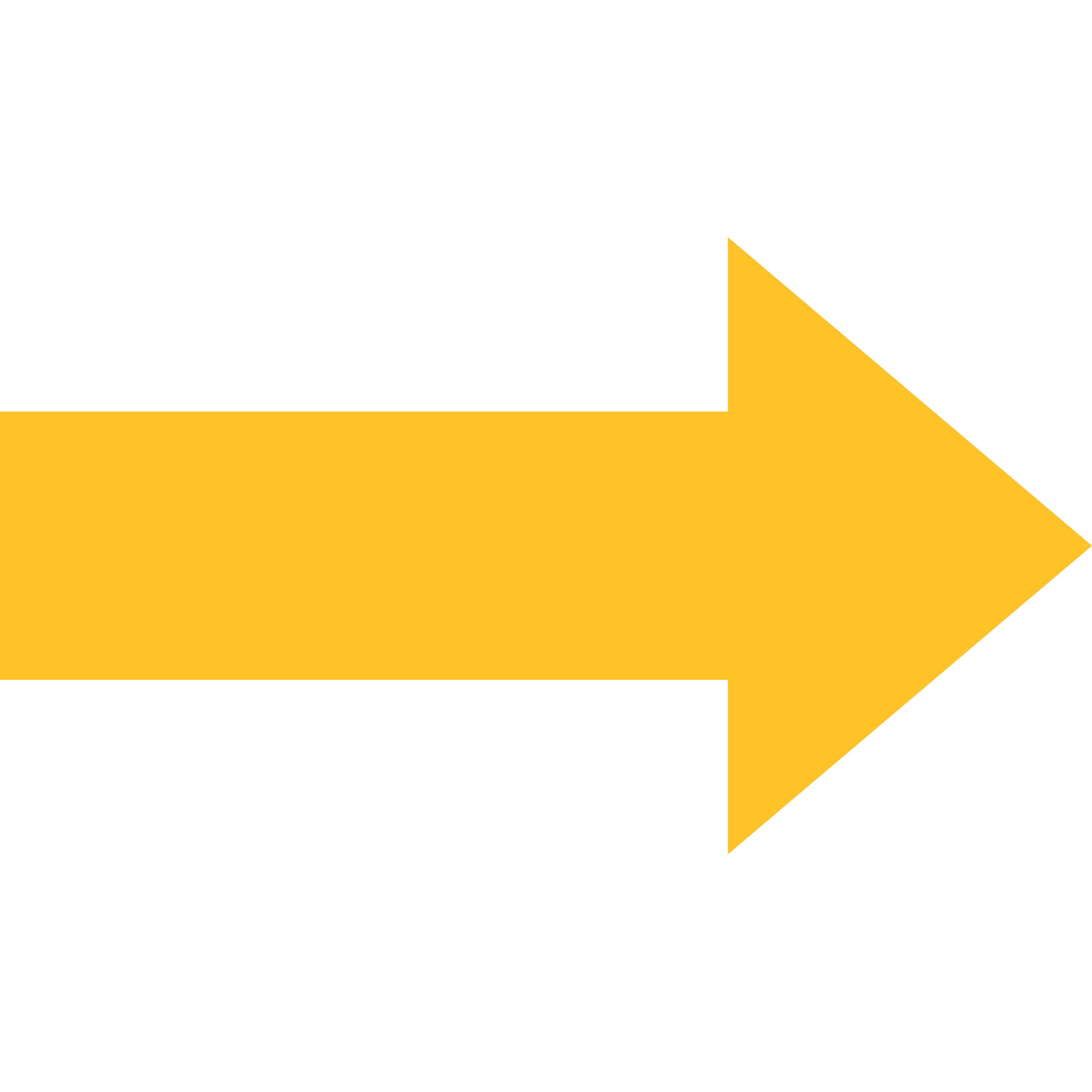

PFEIL

ZN0020 – 100mm x 200mm

KLEINER PFEIL

ZN0009 – 100mm x 65mm

GROßER PFEIL

ZN0012 – 300mm x 230mm

EXTRA GROßER PFEIL

ZN0333 – 1000mm x 565mm

KURZER PFEIL

ZN0050 – 90mm

LINIEN BLOCK

ZN0021 – 150mm x 50mm

L-FORM

ZN0024 – 100mm x 100mm

T-FORM

ZN0129 – 100mm x 150mm

X-FORM

ZN0022 – 150mm x 150mm

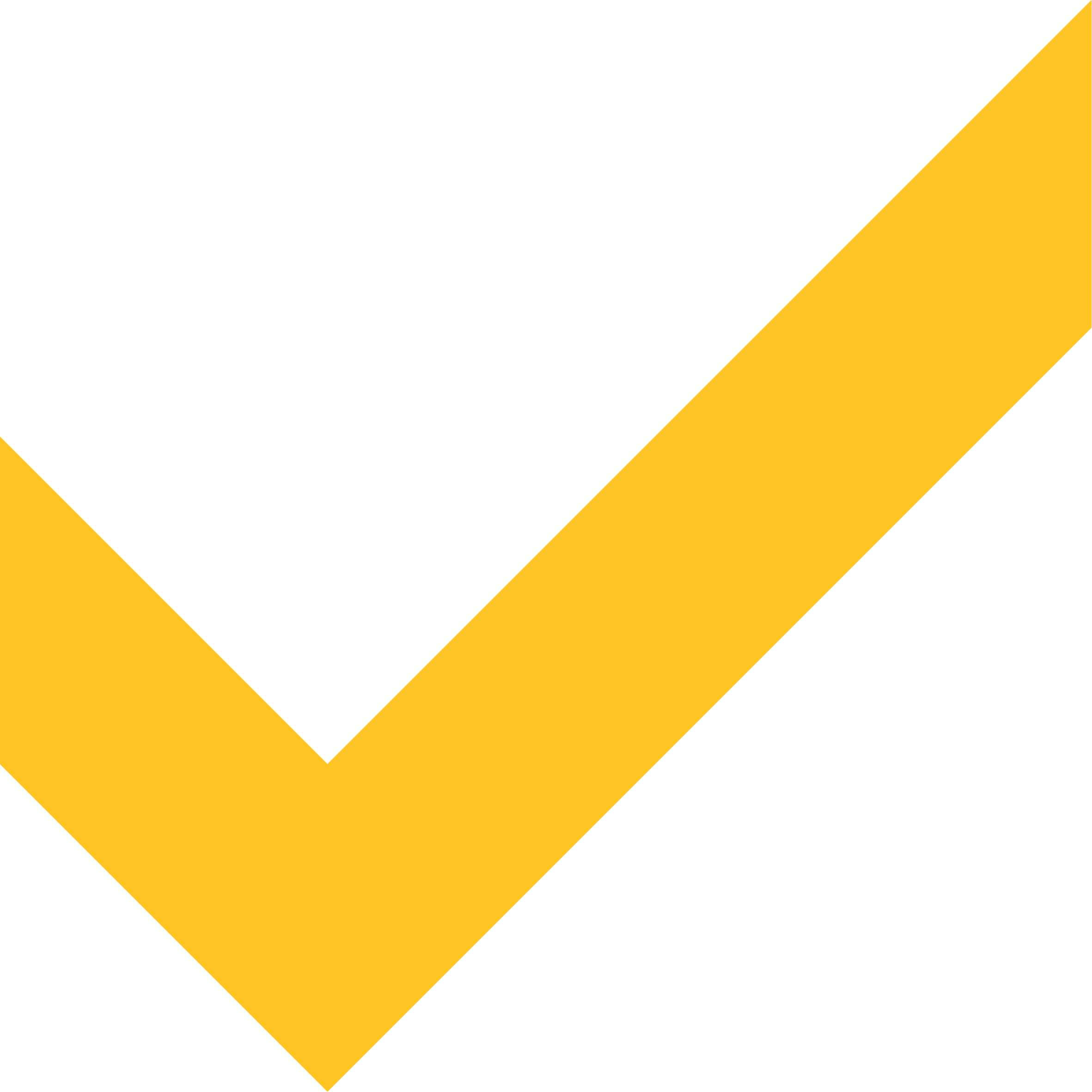

HAKEN

ZN0004 – 200mm x 200mm

KREUZ

ZN0005 – 200mm x 200mm

FÜSSE (KLICKEN, UM DIE ABMESSUNGEN ANZUZEIGEN)

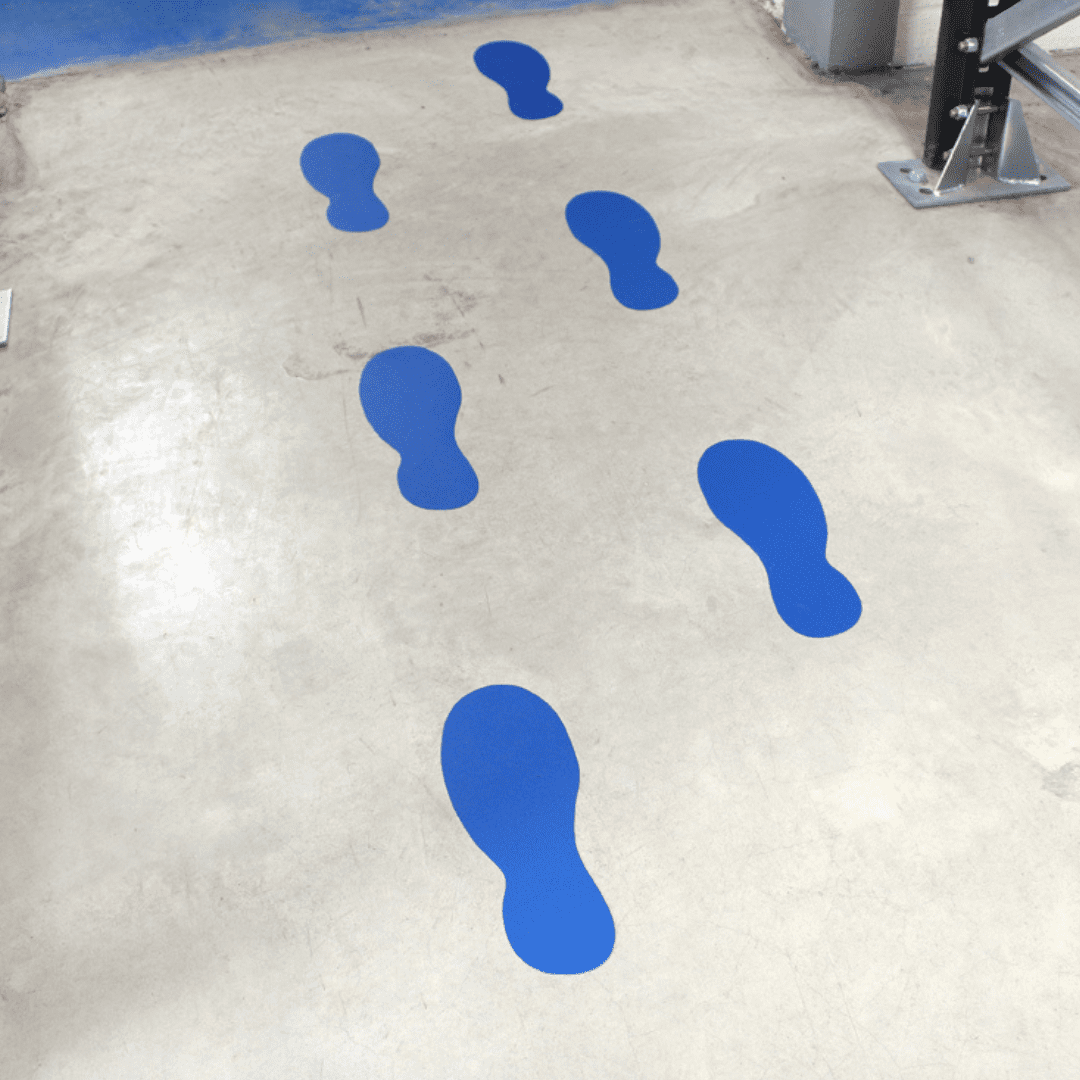

FÜßE

ZN0201 – 280mm x 105mm

FÜßE

ZN0010 – 57mm x 104mm

FÜßE

ZN0011 – 120mm x 210mm

SCHUHE

ZN0013 – 240mm x 90mm

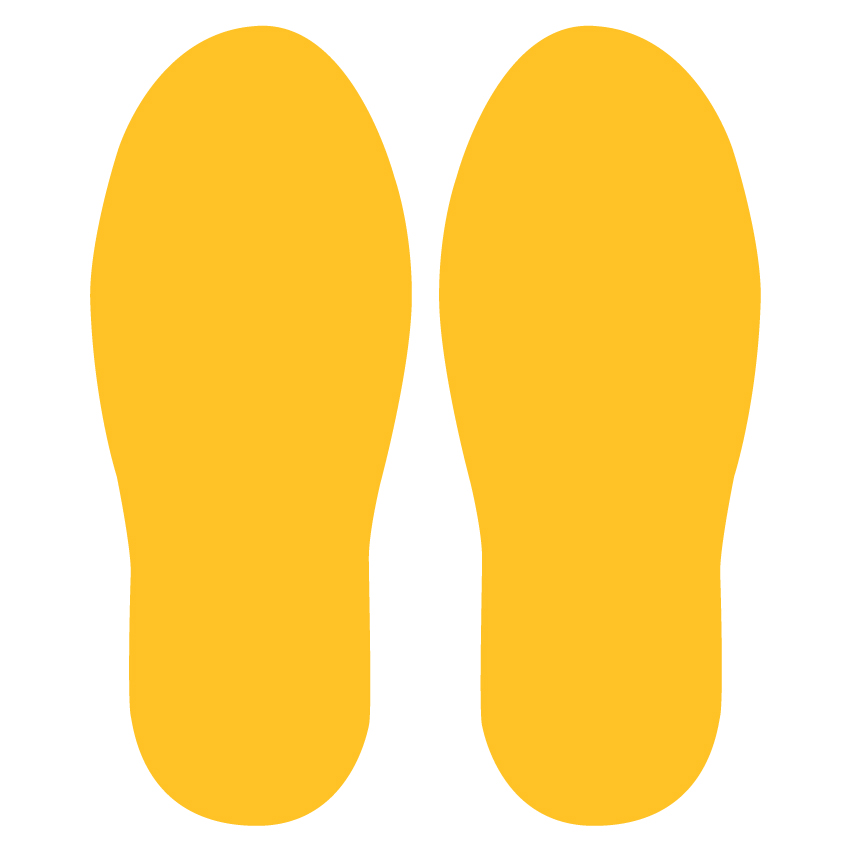

STIEFEL

ZN0016 – 300mm x 120mm

VERBINDUNGEN (KLICKEN SIE AUF DIE BILDER, UM DIE ABMESSUNGEN ANZUZEIGEN)

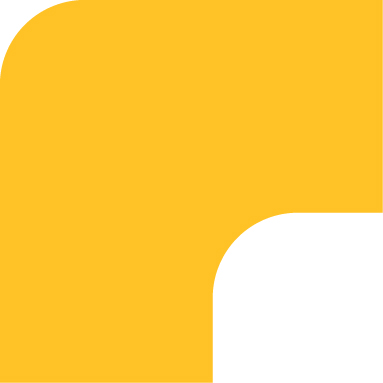

90° WINKEL

ZN0063  – Zum Verbinden von 50-mm-Rollen

90° WINKEL

ZN0054 – Zum Verbinden von 75-mm-Rollen

90° WINKEL

ZN0202 – Zum Verbinden von 100-mm-Rollen

45° WINKEL

ZN0214 – Zum Verbinden von 50-mm-Rollen

45° WINKEL

ZN0215 – Zum Verbinden von 75-mm-Rollen

45° WINKEL

ZN0216 – Zum Verbinden von 100-mm-Rollen

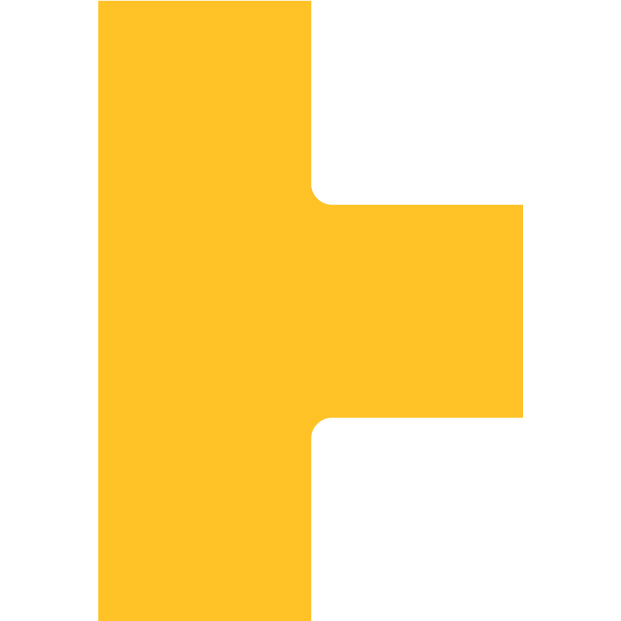

T-KREUZUNG

ZN055 – Zum Verbinden von 50-mm-Rollen

T-KREUZUNG

ZN0217 – Zum Verbinden von 75-mm-Rollen

T-KREUZUNG

ZN0339 – Zum Verbinden von 100-mm-Rollen

BRÜCKE

ZN0061 – Zum Verbinden von 50-mm-Rollen

BRÜCKE

ZN0062 – Zum Verbinden von 75-mm-Rollen

BRÜCKE

ZN0340 – Zum Verbinden von 100-mm-Rollen

ENDKAPPE

ZN0157 – Zum Verbinden von 50-mm-Rollen

ENDKAPPE

ZN0341 – Zum Verbinden von 75-mm-Rollen

ENDKAPPE

ZN0342 – Zum Verbinden von 100-mm-Rollen

ZAHLEN (KLICKEN, UM DIE ABMESSUNGEN ANZUZEIGEN)

NULL

ZN0083– 95mm ZN0093– 180mm ZN0093– 300mm

1

ZN0084– 95mm ZN0094– 180mm ZN0103– 300mm

2

ZN0085– 95mm ZN0095– 180mm ZN0105– 300mm

3

ZN0083– 95mm ZN0096– 180mm ZN0103– 300mm

4

ZN0087– 95mm ZN0097– 180mm ZN0107– 300mm

5

ZN0088– 95mm ZN0098– 180mm ZN0108– 300mm

6

ZN0089– 95mm ZN0099– 180mm ZN0109– 300mm

7

ZN0090– 95mm ZN0100– 180mm ZN0110– 300mm

8

ZN0091– 95mm ZN0101– 180mm ZN0111– 300mm

9

ZN0092– 95mm ZN0102– 180mm ZN0112– 300mm

BUCHSTABEN (KLICKEN, UM DIE ABMESSUNGEN ANZUZEIGEN)

A

ZN0229– 95mm ZN0255– 180mm

B

ZN0230– 95mm ZN0230– 180mm

C

ZN0231– 95mm ZN0257– 180mm

D

ZN0232– 95mm ZN0258– 180mm

E

ZN0233– 95mm ZN0259– 180mm

F

ZN0234– 95mm ZN0260– 180mm

G

ZN0235– 95mm ZN0261 – 180mm

H

ZN0236– 95mm ZN0262– 180mm

I

ZN0237– 95mm ZN0263– 180mm

J

ZN0238– 95mm ZN0264– 180mm

K

ZN0239– 95mm ZN0265– 180mm

L

ZN0240– 95mm ZN0266– 180mm

M

ZN0241– 95mm ZN0267– 180mm

N

ZN0242– 95mm ZN0268– 180mm

O

ZN0243– 95mm ZN0269– 180mm

P

ZN0244– 95mm ZN0270– 180mm

Q

ZN0245 – 95mm ZN0271– 180mm

R

ZN0246– 95mm ZN0272– 180mm

S

ZN0247– 95mm ZN0273– 180mm

T

ZN0248– 95mm ZN0274– 180mm

U

ZN0249– 95mm ZN0275– 180mm

V

ZN0250– 95mm ZN0276– 180mm

W

ZN0251– 95mm ZN0277– 180mm

X

ZN0252– 95mm ZN0278– 180mm

Y

ZN0253– 95mm ZN0279– 180mm

Z

ZN0254– 95mm ZN0280– 180mm

FARBEN

H6905N

Pantone / RAL
Schwarz 6 U / 9004

Durchschn­it­tlicher LRV
3,13

Schwarz

H6905R

Pantone / RAL
484 U / 3001

Durchschn­it­tlicher LRV
15,38

Rot

H6905O

Pantone / RAL
1665 U / 2010

Durchschn­it­tlicher LRV
23,07

Orange

H6905Y

Pantone / RAL
137 U / 1003

Durchschn­it­tlicher LRV
52,33

Gelb

H6905V

Pantone / RAL
3288 U / 6032

Durchschn­it­tlicher LRV
14,93

Grün
H6905B-Blue-PermaLean-Swatch New

H6905B

Pantone / RAL
294 U / 5005

Durchschn­it­tlicher LRV
6,63

Blau
H6905W-White-PermaRoute-Swatch

H6905W

Pantone / RAL
705 U / 9003

Durchschn­it­tlicher LRV
78,14

Weiß

H6905D

Pantone / RAL
Schwarz:
Gelb:

Durchschn­it­tlicher LRV
Schwarz:
Gelb:

Gelb / Schwarz Gefahr

H6905E

Pantone / RAL
Schwarz: Schwarz 6 U / 9004
Weiß: 7541 U / 9003

Durchschnitt LRV
Schwarz: 2,83
Weiß: 80,38

Schwarz / Weiß

H6905A

Pantone / RAL
Rot:
Weiß:

Durchschn­it­tlicher LRV
Rot:
Weiß:

Rot / Weiß Gefahr

DOWNLOADS

TECHNISCHE DATEN

Lichtref­le­xi­on­swerte

PRODUKTCODE FARBE Durchschnittlicher LRV RANGE
H6905N Schwarz 3,13 0,78
H6905R Rot 15,38 0,47
H6905O Orange 23,07 0,25
H6905Y Gelb 52,33 0,96
H6905V Grün 14,93 0,78
H6905B Blau 6,63 0,4
H6905W Weiß 78,14 0,78
H6905D Schwarz / Gelb 3,18 / 62,88 0,75 / 2,08
H6905A Rot / Weiß 25,82 / 78,55 1,14 / 1,93
