Bodenmarkierungsband – Permastripe Manufacturer

H6901

  • Selbstklebendes Bodenmarkierungsband
  • 1 mm industrielles PVC
  • Abgeschrägte Kanten für einen super reibungslosen Transport
  • Durchgehend einfarbig
  • Bodenmarkierungsband mit abgeschrägten Kanten und außergewöhnlicher Klebekraft

ÜBERBLICK

5S Optimisation

5S optimierte Bodenmarkierung

3 Jahre Garantie

Quality

Hochwertige Linienmarkierung

Langlebige Bodenmarkierung

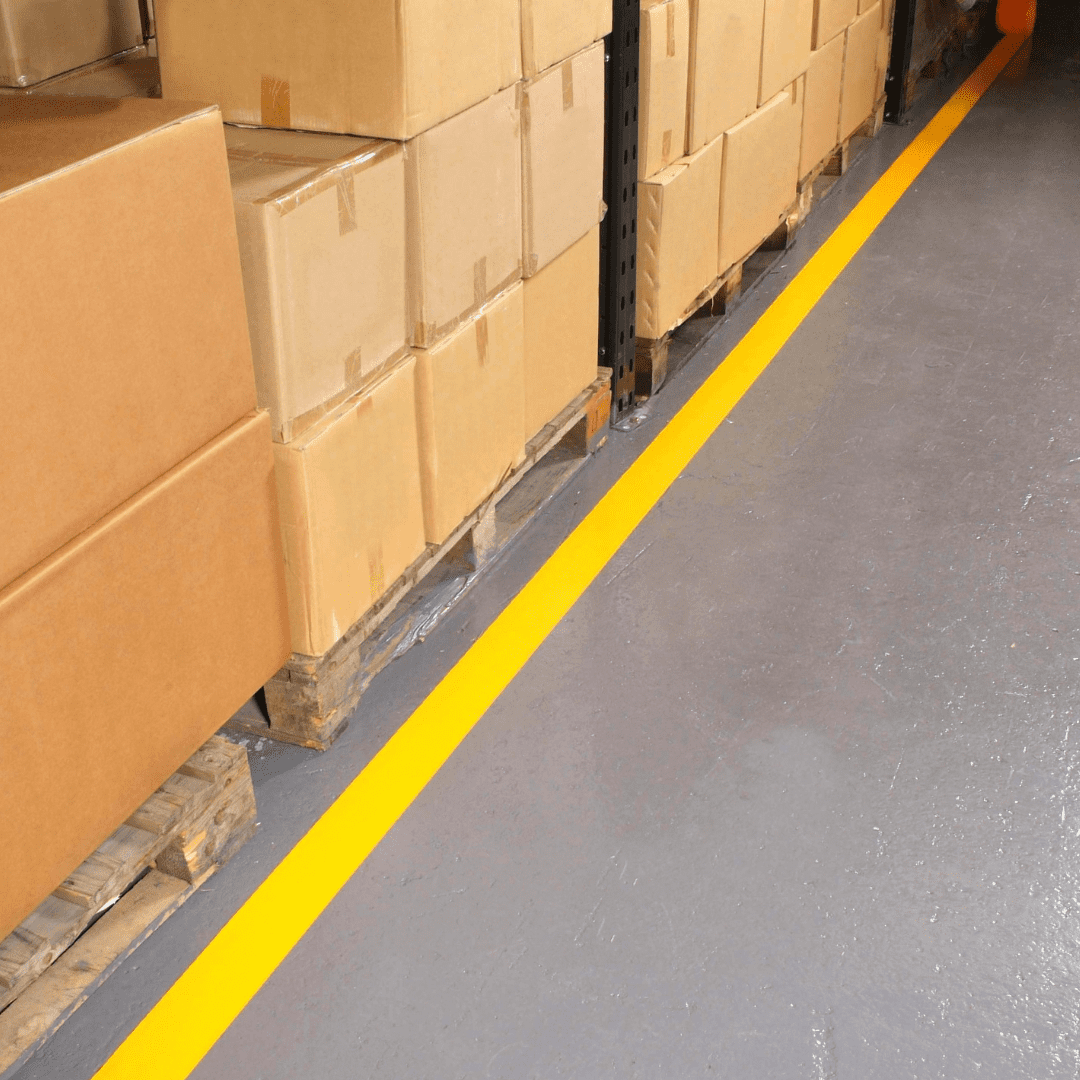

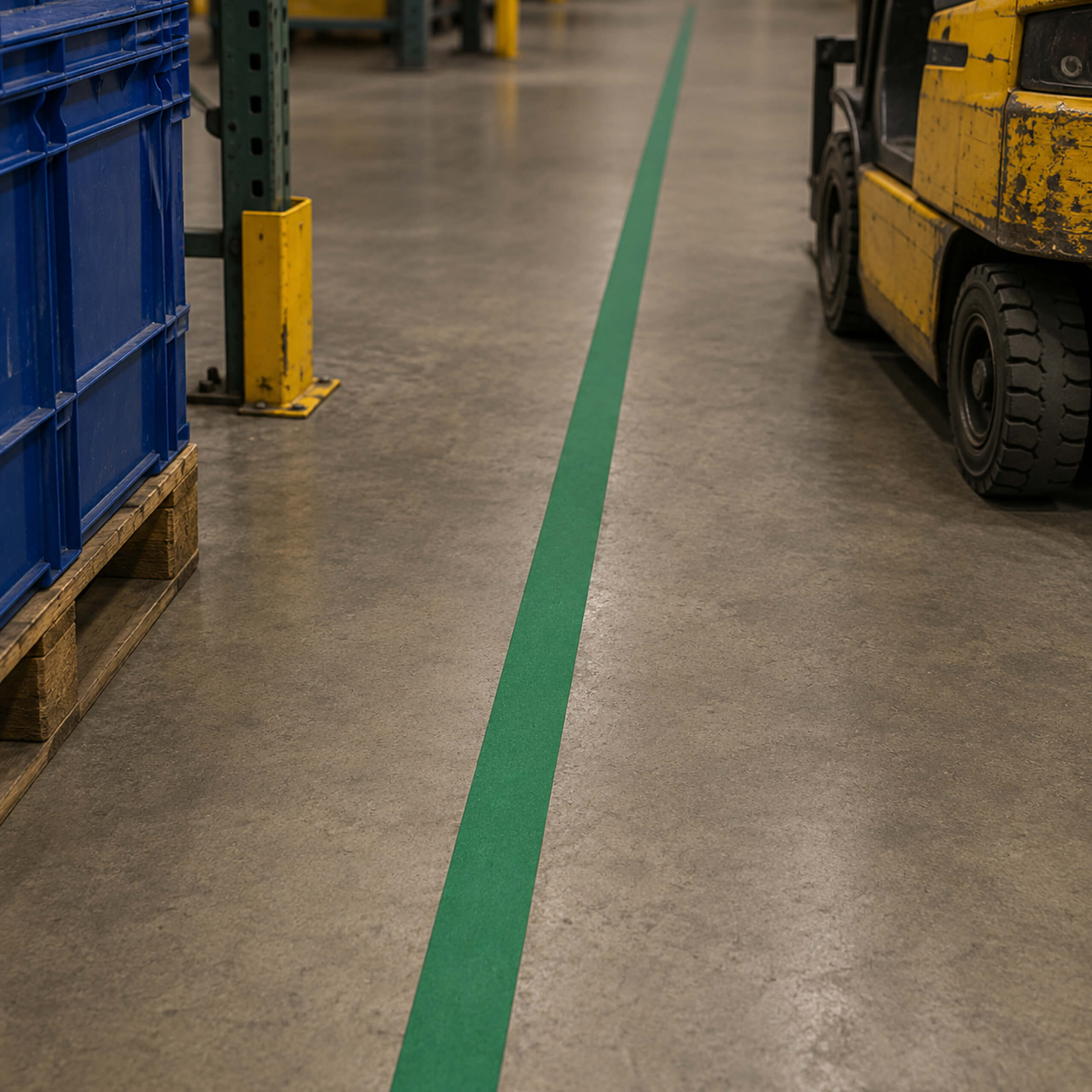

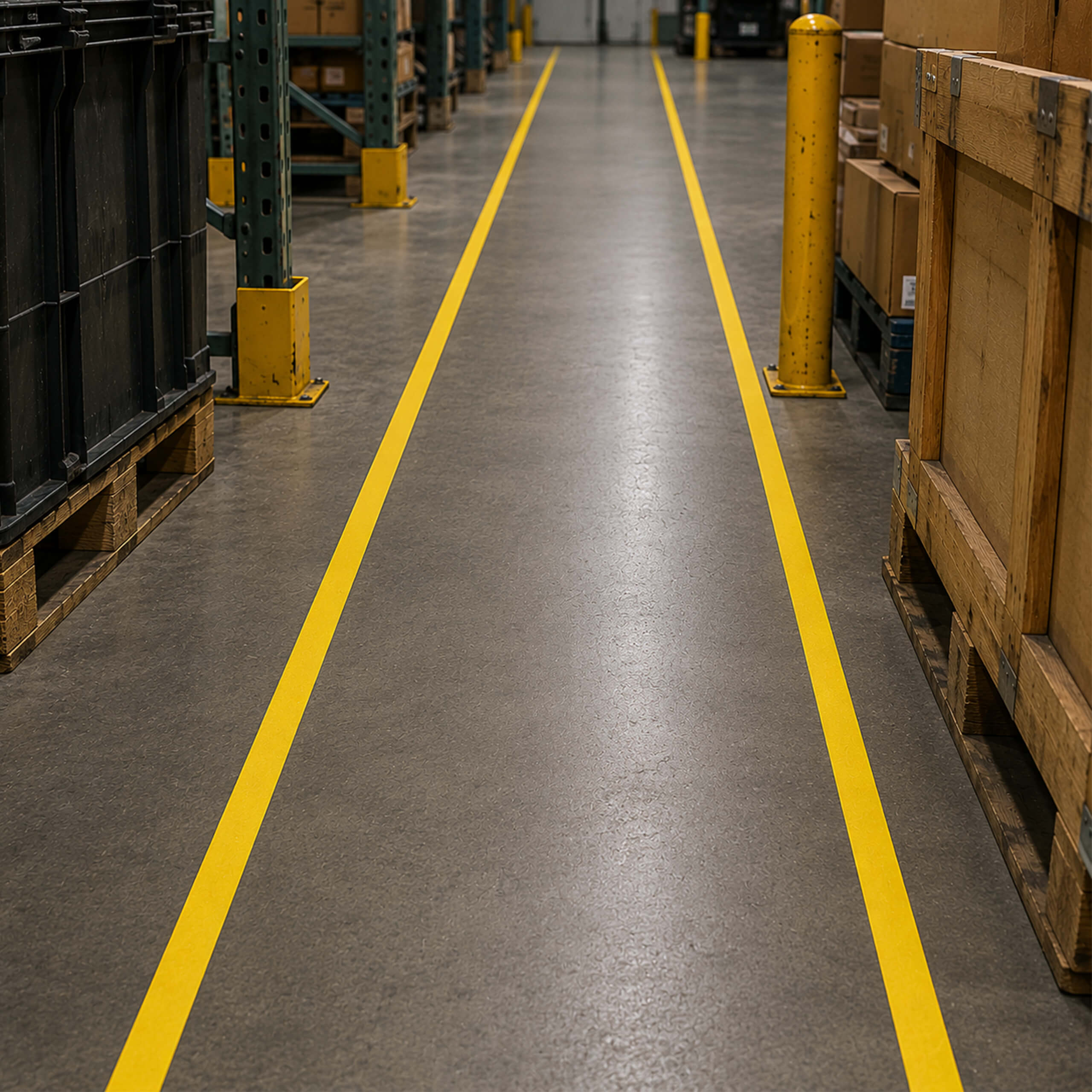

Extremely robust floor marking tape, self-adhesive and suitable for forklifts

PermaStripe – one of the world’s most robust and easiest-to-apply floor marking solutions!

In 2006, we decided to develop a new type of floor marking tape because aisle marking had remained unchanged for decades. Conventional floor marking tapes were thin, not very durable, and had a short lifespan. Applying floor marking paint is time-consuming, produces fumes (and therefore cannot be used in the food and pharmaceutical industries), and is not permanent. Applying resins is equally time-consuming, very expensive, and produces harmful solvent fumes; affected areas must remain closed off during application and for 24 hours afterward.

The result of our development was PermaStripe.

PermaStripe floor marking tape offers the following advantages:

  • Made from durable, homogeneous plastic with a thickness of 1mm (1000µm). The color is not printed on, but the tape is dyed throughout, so you could scratch it all day without damaging it.
  • Beveled edge – because the product is so massive, we have provided beveled edges on both sides so that the tape does not become a tripping hazard.
  • Excellent adhesive strength thanks to a solid adhesive coating. Our adhesive layer alone measures 140 µm – to put this into perspective: the total thickness of conventional floor marking tapes is around 40 µm!
  • Adhesive right to the edge – We distinguish ourselves by being able to extend the coating right to the edge of the tape, because if the adhesive layer of a product fails, this does not happen in the middle but at the edge – we prevent this.
  • Plastic protective film – because paper protective films can tear if applied quickly. That’s why we use plastic protective films for PermaStripe, so you can apply the tape quickly and easily, thus reducing labor costs.
  • Two-year warranty – can any other solution offer a two-year warranty?

permastripe breakdown floor marking tape

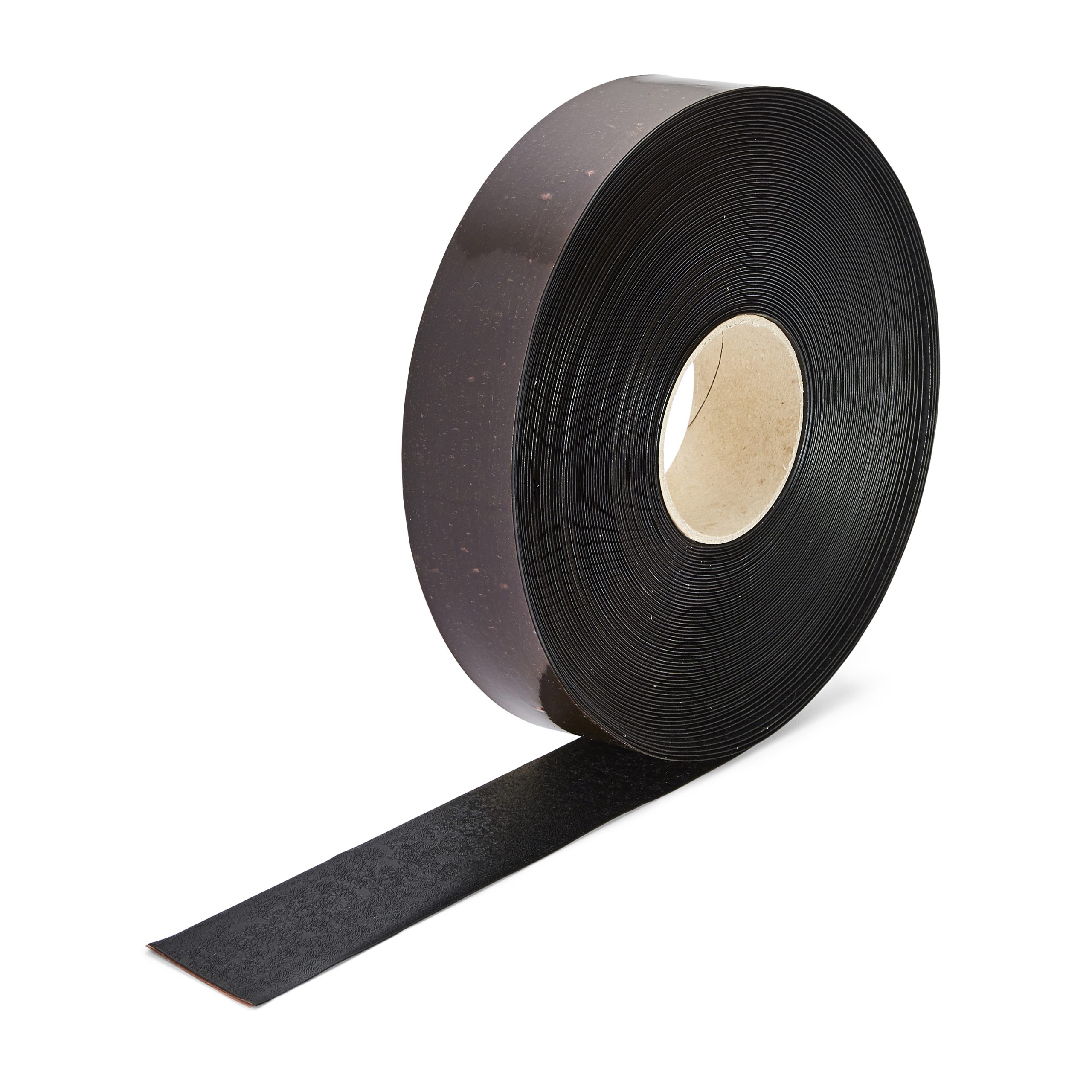

  • We produce PermaStripe rolls with dimensions of 50mmx30m, 75mmx30m or 100mmx30m, Bar Glow in the Dark PermaStripe, which is only available in 75 mm and 100 mm.

letters and numbers

We produce PermaStripe floor marking tape in the shape of all letters and numbers and offer two font sizes: 95mm and 180mm.

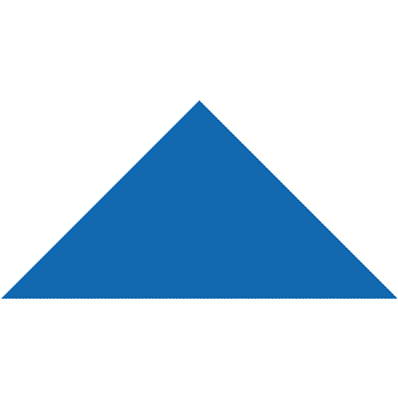

forms

We also produce PermaStripe floor marking tape in various shapes to ensure a uniform appearance: we offer discs, arrows, corners, L, X, T shapes and 45° angles as well as many other shapes.

Applicator

To ensure minimal application effort, our application-specific applicator applies the product quickly and easily. The applicator automatically removes the protective film. It is supplied complete in its application-specific packaging with illustrated instructions.

Banddicke

PermaStripe™ ist mit einer beachtlichen Gesamtdicke von 1,3 mm konstruiert und bietet außergewöhnliche Haltbarkeit für stark frequentierte industrielle Umgebungen. Die massive PVC-Konstruktion sorgt für ein starres, hochbelastbares Profil, das Rissen, Ablösungen und Kantenbeschädigungen standhält—selbst in Bereichen mit ständigem Gabelstapler-, Hubwagen- und Fußverkehr.
Trotz seiner Stärke behält das Material genügend Flexibilität, um sauber zu liegen und sicher auf vorbereiteten Oberflächen zu haften. Die zusätzliche Dicke schafft eine hochsichtbare, langlebige Markierungslösung, die Abrieb, Stößen und täglicher Beanspruchung standhält, ohne die einfache Anwendung oder Leistung zu beeinträchtigen.

Custom printing

With custom-printed PermaStripes, you can transform your building into a clear and organized space. Our custom PermaStripe tape is used to mark waiting areas, restricted zones, or check-in areas on the floor, ensuring that important information such as „Authorized Personnel Only“ or „Stay Behind Line“ is permanently visible exactly where it’s needed. Featuring bold, abrasion-resistant text and vibrant colors, it provides unparalleled clarity and durability in high-traffic areas.

Cleaning marking tape Permastreifen versus Permastreifen smooth

The patterned Permastripe has grooves where mud can get trapped, even after cleaning. If you’re looking for a smooth finish that mud won’t stick to, choose Permastripe Smooth. The diagram below shows the difference between the two line marking tapes before and after cleaning.

Before and After PermaStripe Zoomed Squares - DE

Grip Angle R10 Coefficient of Friction

Bei Heskins steht Sicherheit bei allem, was wir tun, an erster Stelle. Unser PermaStripe-Linienmarkierungsband wird strengen Tests in kontrollierten Laborumgebungen unterzogen, um seine rutschfesten Eigenschaften sicherzustellen. Wir freuen uns, mitteilen zu können, dass unser PermaStripe-Band mit einer beeindruckenden R10-Bewertung ausgezeichnet wurde, was zeigt, dass unser PermaStripe kein gewöhnliches Linienmarkierungsband ist.

Wie kann ich es sehen?

Wir senden Ihnen gerne Muster zu. Wir möchten, dass Sie das strapazierfähige Bodenmarkierungsband von PermaStripe aus erster Hand sehen. Fordern Sie es bitte über das Musteranforderungsformular von PermaStripe an (führt Sie zu permastripe.co.uk) und wir werden Ihnen umgehend ein Musterpaket zusenden.

Sie können uns umgehend per Telefon oder Live-Chat kontaktieren. Alternativ können Sie das obige Kontaktformular ausfüllen und wir werden uns so schnell wie möglich bei Ihnen melden.

Hazard Marking Tape Diagram 3 FR with Angles

VIDEOS

Beschädigte Stelle mit Skalpell entfernen

Maßband auf Länge messen

BAND AUF LÄNGE ZUSCHNEIDEN

Oberfläche mit H3508 IPA-Oberflächenreiniger reinigen

Klebefolie abziehen

Band an Ort und Stelle ausrichten

Klebeband mit Rolle auftragen

H3502 Edge Fix anwenden

DESIGN

Bitte beachten Sie, dass die PermaStripe-Formen NY (Besonderes Gelb), NV (Special Green), BCB (Dunkelblau), NB (Besonderes Blau) und E (Schwarz-Weiß-Gefahr) nicht verfügbar sind. Diese Farben sind nur in Rollen von 50 mm x 30 m erhältlich.

Bitte klicken Sie auf die Bilder, um die Abmessungen anzuzeigen.

FORMEN (KLICKEN, UM DIE ABMESSUNGEN ANZUZEIGEN)

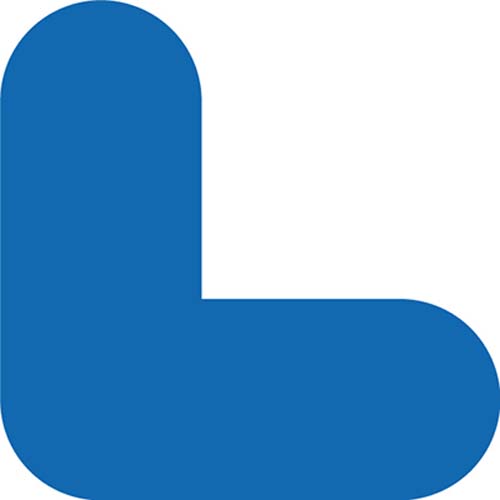

L

ZN0027 – 200mm x 200mm

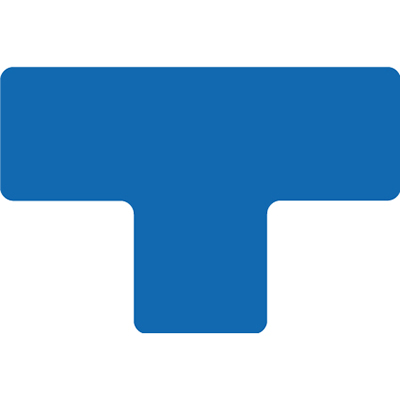

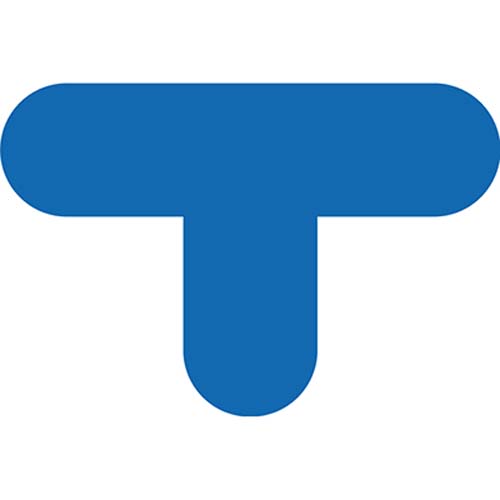

T

ZN0028 – 300mm x 200mm

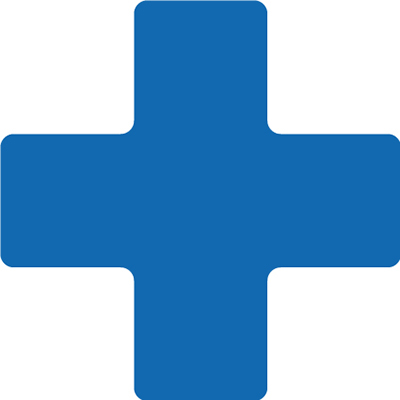

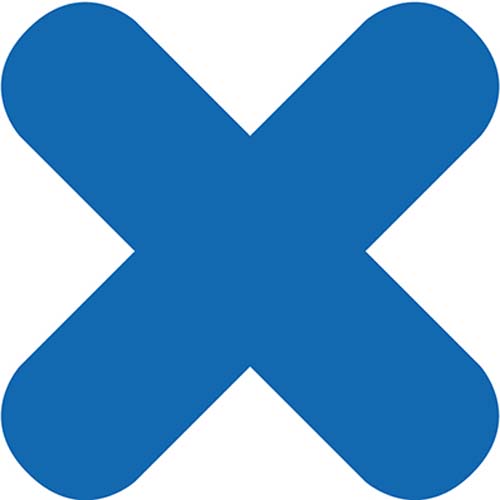

X

ZN0029 – 300mm x 300mm

KREIS

ZN0035 – 50MM Ø

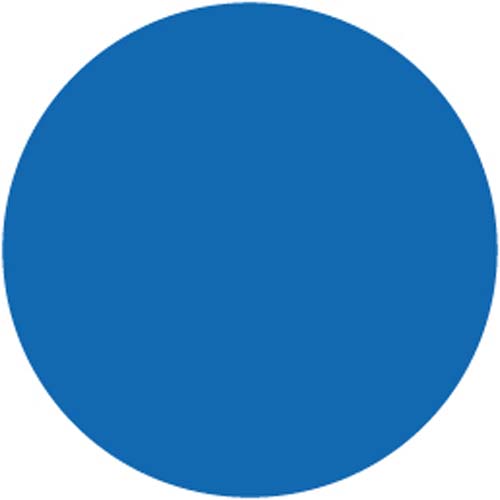

KREIS

ZN0034 – 90mm Ø

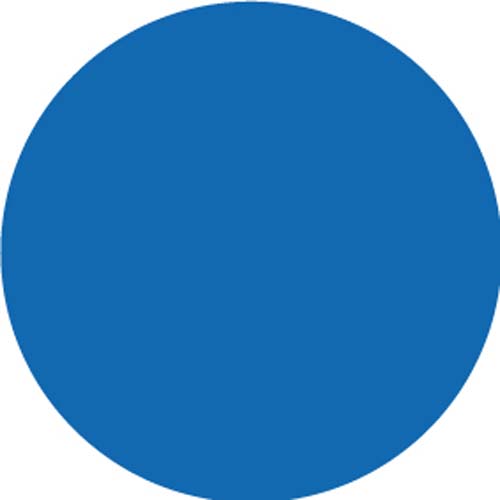

KREIS

ZN0023 – 100mm Ø

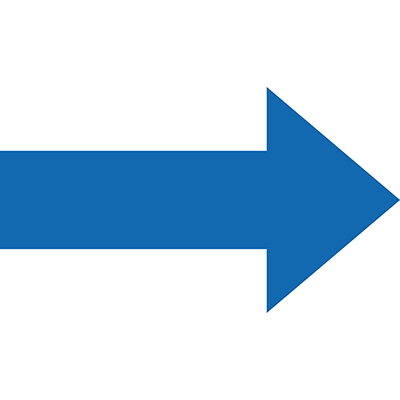

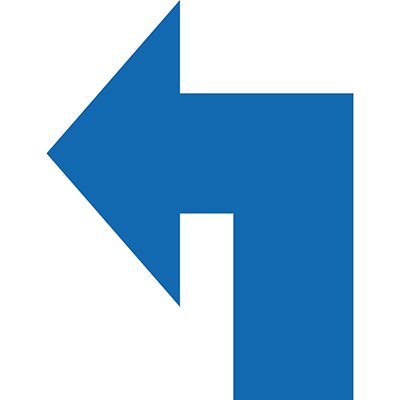

PFEIL (LINKS ODER RECHTS)

ZN0344 – 300mm x 230mm

PFEIL

ZN0020 – 100mm x 200mm

KLEINER PFEIL

ZN0009 – 100mm x 65mm

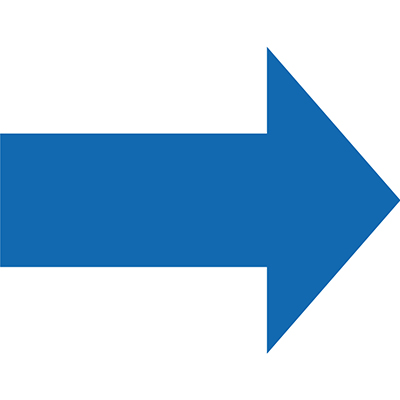

GROßER PFEIL

ZN0012 – 300mm x 230mm

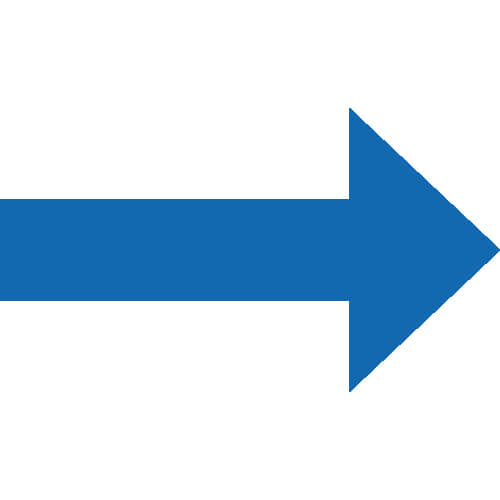

EXTRA GROßER PFEIL

ZN0333 – 1000mm x 565mm

KURZER PFEIL

ZN0050 – 90mm

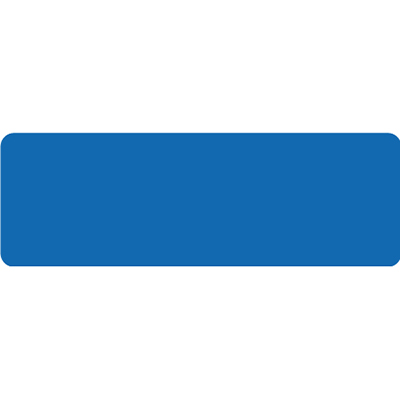

LINIEN BLOCK

ZN0021 – 150mm x 50mm

L-FORM

ZN0024 – 100mm x 100mm

T-FORM

ZN0129 – 100mm x 150mm

X-FORM

ZN0022 – 150mm x 150mm

FÜSSE (KLICKEN, UM DIE ABMESSUNGEN ANZUZEIGEN)

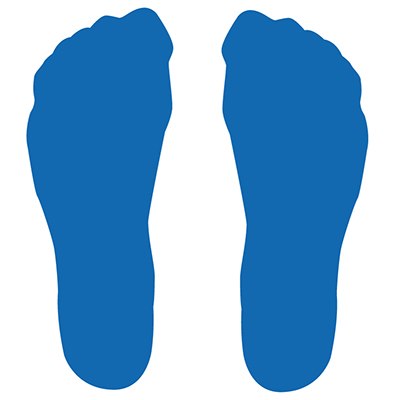

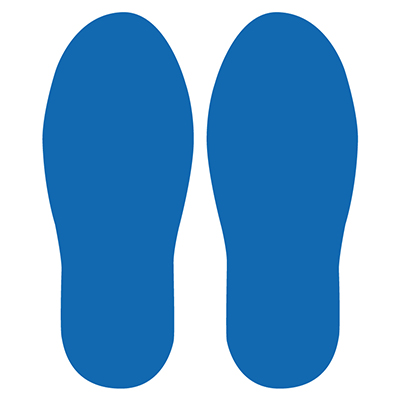

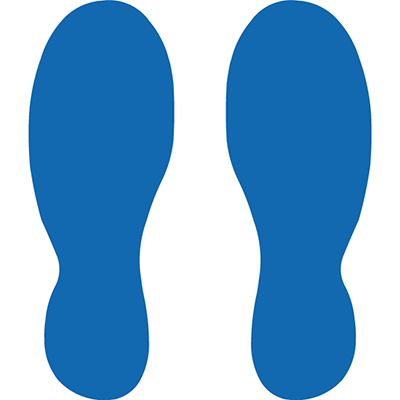

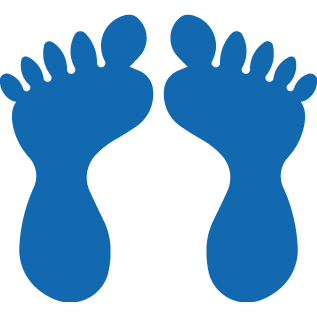

FÜßE

ZN0201 – 280mm x 105mm

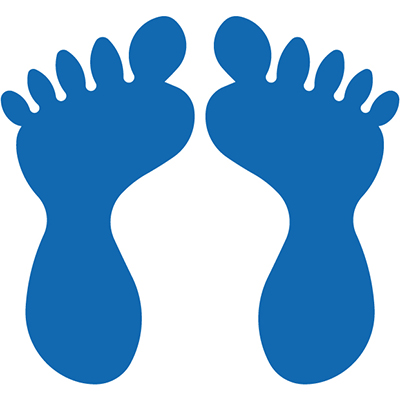

FÜßE

ZN0010 – 57mm x 104mm

FÜßE

ZN0011 – 120mm x 210mm

SCHUHE

ZN0013 – 240mm x 90mm

STIEFEL

ZN0016 – 300mm x 120mm

VERBINDUNGEN (KLICKEN SIE AUF DIE BILDER, UM DIE ABMESSUNGEN ANZUZEIGEN)

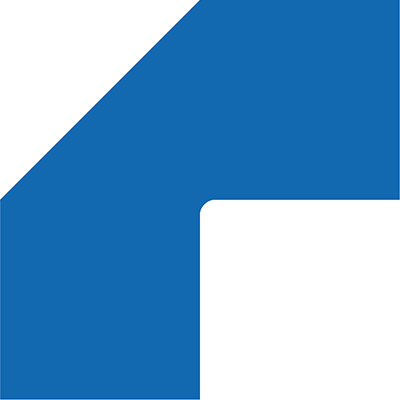

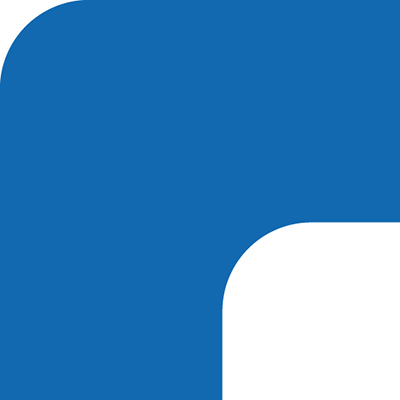

90° WINKEL

ZN0063 – Zum Verbinden von 50-mm-Rollen

90° WINKEL

ZN0054 – Zum Verbinden von 75-mm-Rollen

90° WINKEL

ZN0202 – Zum Verbinden von 100-mm-Rollen

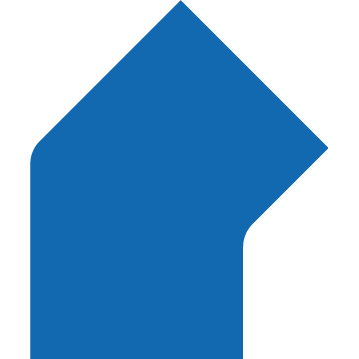

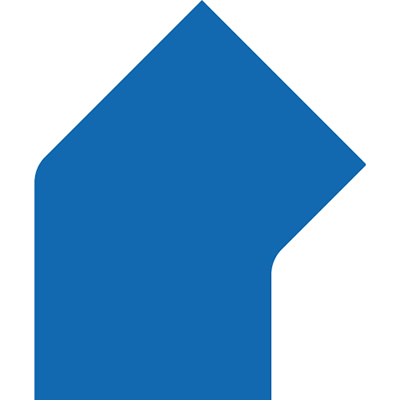

45° WINKEL

ZN0214 – Zum Verbinden von 50-mm-Rollen

45° WINKEL

ZN0215 – Zum Verbinden von 75-mm-Rollen

45° WINKEL

ZN0216 – Zum Verbinden von 100-mm-Rollen

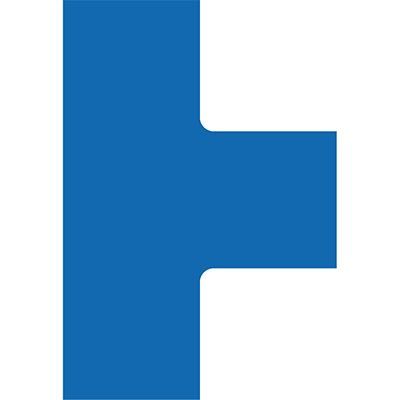

T-KREUZUNG

ZN0055 – Zum Verbinden von 50-mm-Rollen

T-KREUZUNG

ZN0217 – Zum Verbinden von 75-mm-Rollen

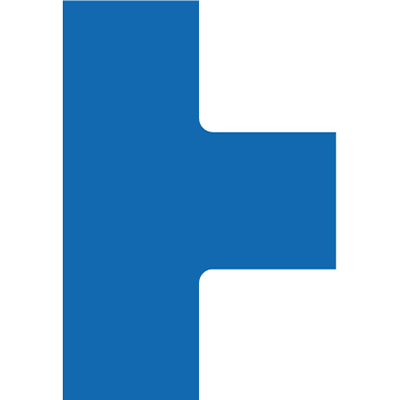

T-KREUZUNG

ZN0339 – Zum Verbinden von 100-mm-Rollen

BRÜCKE

ZN0061 – Zum Verbinden von 50-mm-Rollen

BRÜCKE

ZN0062 – Zum Verbinden von 75-mm-Rollen

BRÜCKE

ZN0340 – Zum Verbinden von 100-mm-Rollen

ENDKAPPE

ZN0157 – Zum Verbinden von 50-mm-Rollen

ENDKAPPE

ZN0341 – Zum Verbinden von 75-mm-Rollen

ENDKAPPE

ZN0342 – Zum Verbinden von 100-mm-Rollen

ZAHLEN (KLICKEN, UM DIE ABMESSUNGEN ANZUZEIGEN)

NULL

ZN0083– 95mm ZN0093– 180mm ZN0093– 300mm

1

ZN0084– 95mm ZN0094– 180mm ZN0103– 300mm

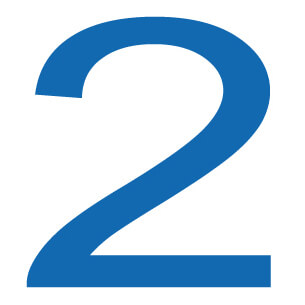

2

ZN0085– 95mm ZN0095– 180mm ZN0105– 300mm

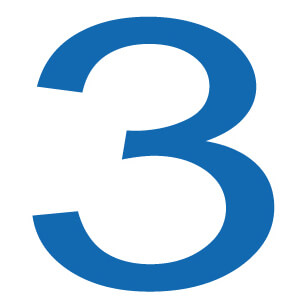

3

ZN0083– 95mm ZN0096– 180mm ZN0103– 300mm

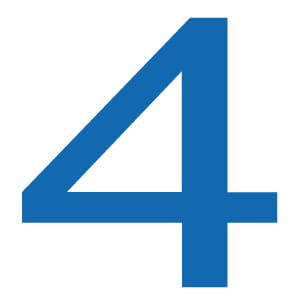

4

ZN0087– 95mm ZN0097– 180mm ZN0107– 300mm

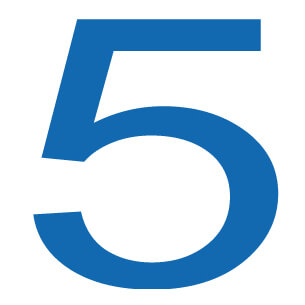

5

ZN0088– 95mm ZN0098– 180mm ZN0108– 300mm

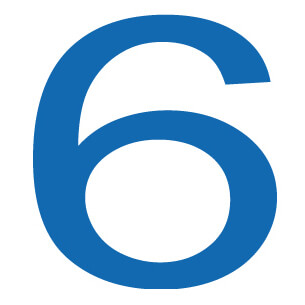

6

ZN0089– 95mm ZN0099– 180mm ZN0109– 300mm

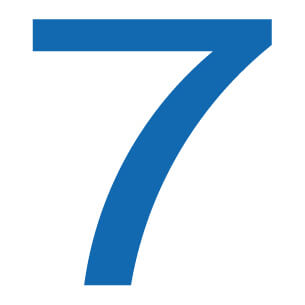

7

ZN0090– 95mm ZN0100– 180mm ZN0110– 300mm

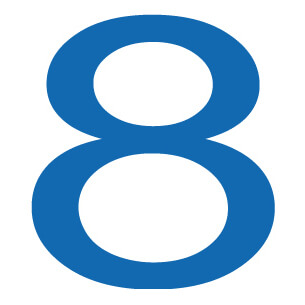

8

ZN0091– 95mm ZN0101– 180mm ZN0111– 300mm

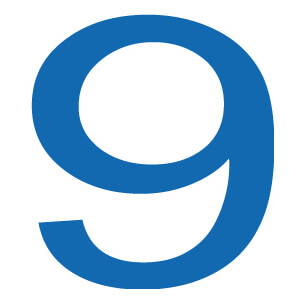

9

ZN0092– 95mm ZN0102– 180mm ZN0112– 300mm

BUCHSTABEN (KLICKEN, UM DIE ABMESSUNGEN ANZUZEIGEN)

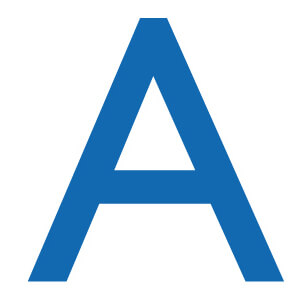

A

ZN0229– 95mm

ZN0255– 180mm

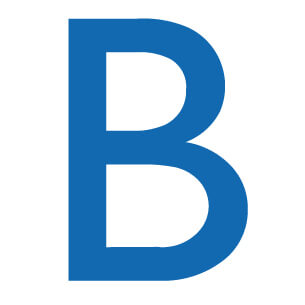

B

ZN0230– 95mm

ZN0230– 180mm

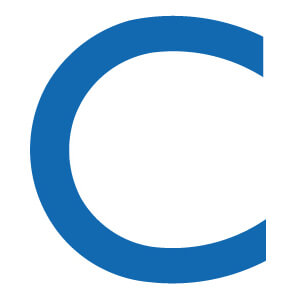

C

ZN0231– 95mm

ZN0257– 180mm

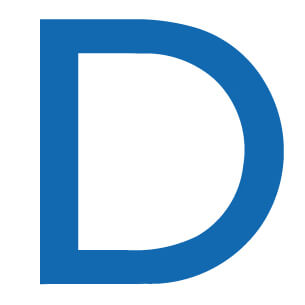

D

ZN0232– 95mm

ZN0258– 180mm

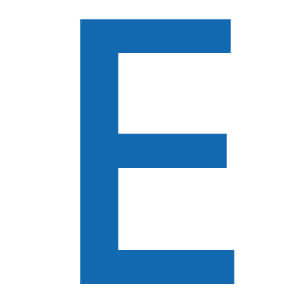

E

ZN0233– 95mm

ZN0259– 180mm

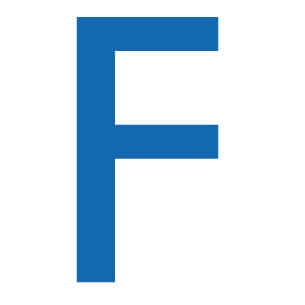

F

ZN0234– 95mm

ZN0260– 180mm

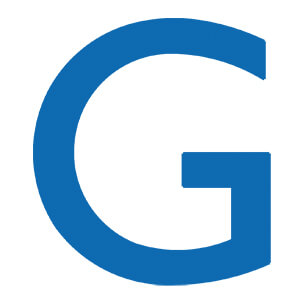

G

ZN0235– 95mm

ZN0261 – 180mm

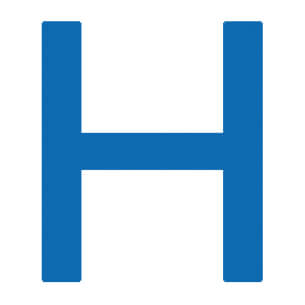

H

ZN0236– 95mm

ZN0262– 180mm

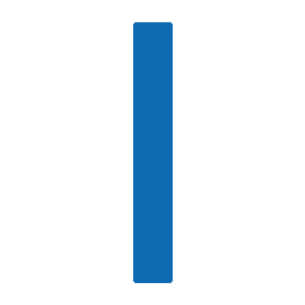

I

ZN0237– 95mm

ZN0263– 180mm

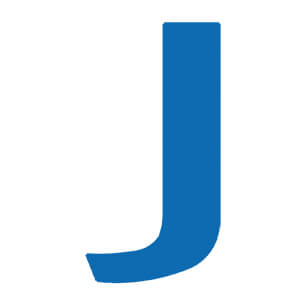

J

ZN0238– 95mm

ZN0264– 180mm

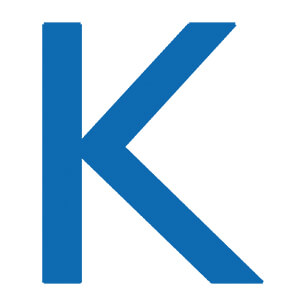

K

ZN0239– 95mm

ZN0265– 180mm

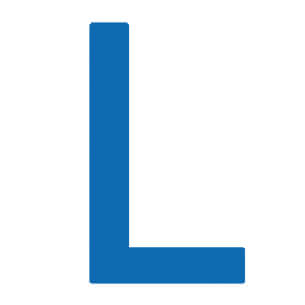

L

ZN0240– 95mm

ZN0266– 180mm

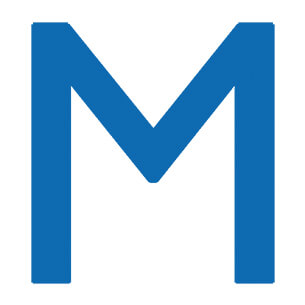

M

ZN0241– 95mm

ZN0267– 180mm

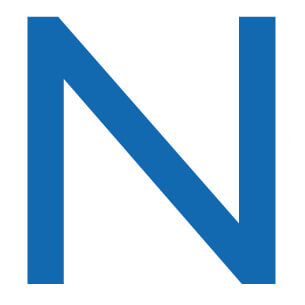

N

ZN0242– 95mm

ZN0268– 180mm

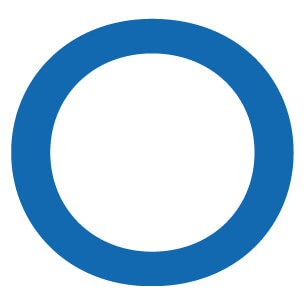

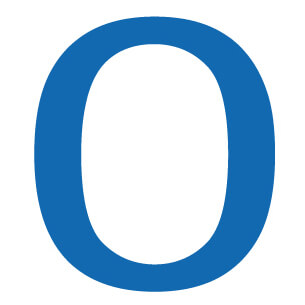

O

ZN0243– 95mm

ZN0269– 180mm

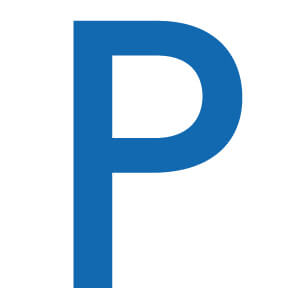

P

ZN0244– 95mm

ZN0270– 180mm

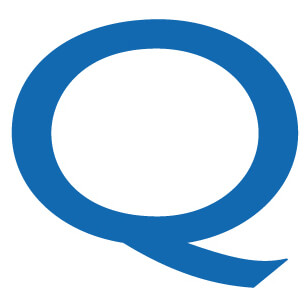

Q

ZN0245 – 95mm

ZN0271– 180mm

R

ZN0246– 95mm

ZN0272– 180mm

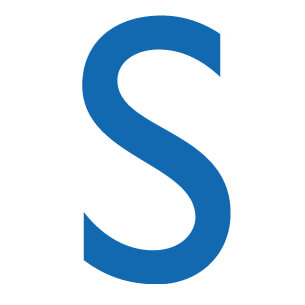

S

ZN0247– 95mm

ZN0273– 180mm

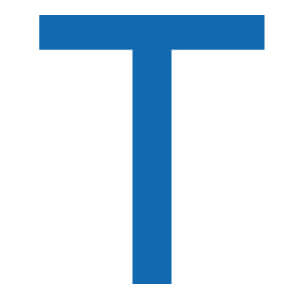

T

ZN0248– 95mm

ZN0274– 180mm

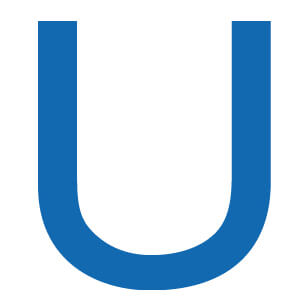

U

ZN0249– 95mm

ZN0275– 180mm

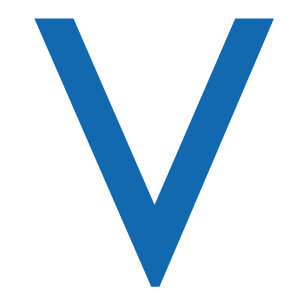

V

ZN0250– 95mm

ZN0276– 180mm

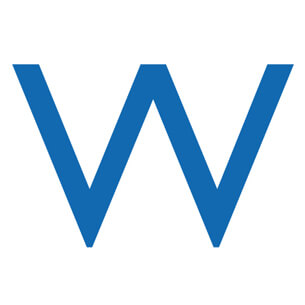

W

ZN0251– 95mm

ZN0277– 180mm

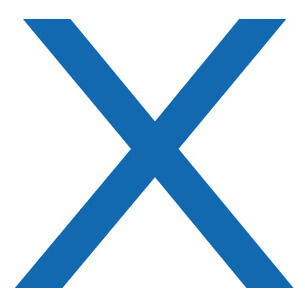

X

ZN0252– 95mm

ZN0278– 180mm

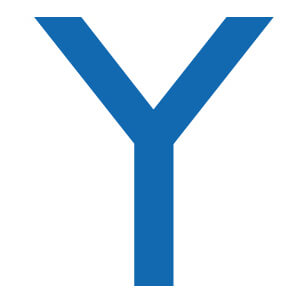

Y

ZN0253– 95mm

ZN0279– 180mm

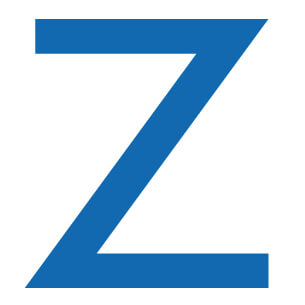

Z

ZN0254– 95mm

ZN0280– 180mm

FARBEN

H6901N

Pantone / RAL
Schwarz 6 U / 9004

Durchschnitt LRV
2,35

Schwarz

H6901R

Pantone / RAL
199 U / 3018

Durchschnitt LRV
17,99

Rot

H6901O

Pantone / RAL
021 U / 2009

Durchschnitt LRV
35,74

Orange

H6901Y

Pantone / RAL
106 U / 1018

Durchschnitt LRV
49,89

Gelb

H6901F

Pantone / RAL
803 U / 1016

Durchschnitt LRV
72,26

Fluoreszierendes Gelb

H6901NY

Pantone / RAL
137U / 1003

Durchschnittlicher LRV
54,16

Spezielles Gelb

H6901V

Pantone / RAL
Grün U / 6018

Durchschnitt LRV
24,22

Grün

H6901NV

Pantone / RAL
3288U / 6032

Durchschnittlicher LRV
18,46

Spezielles Grün

H6901B

Pantone / RAL
299 U / 5012

Durchschnitt LRV
18,77

Blau

H6901BCB

Pantone / RAL
282 U / 5013

Durchschnitt LRV
14,86

Dunkelblau

H6901NB

Pantone / RAL
5255U / 5005

Durchschnittlicher LRV
5,95

Spezielles Blau

H6901W

Pantone / RAL
7541 U / 9003

Durchschnitt LRV
80,29

Weiß

H6901D

Pantone / RAL
Schwarz: Schwarz 6 / 1235
Gelb: 9004 / 1021

Durchschnitt LRV
Schwarz: 2.35
Gelb: 49.89

Schwarz / Gelb

H6901A

Pantone / RAL
Rot: 485 U / 3001
Weiß: 7541 U/ 9003

Durchschnitt LRV
Rot: 21,39
Weiß: 74

Rot / Weiß

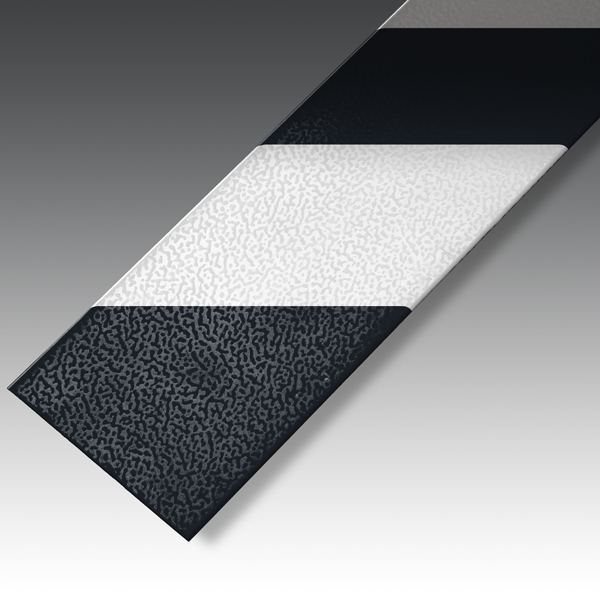

H6901E

Pantone / RAL
Schwarz: Schwarz 6 U / 9004
Weiß: 7541 U / 9003

Durchschnitt LRV
Schwarz: 2,83
Weiß: 80,38

Schwarz / Weiß

DOWNLOADS

TECHNISCHE DATEN

Lichtreflexionswerte

PRODUKTCODE FARBE Durchschnittlicher LRV RANGE
H6901N Schwarz 2,35 1,96
H6901R Rot 17,99 2,71
H6901O Orange 35,74 0,56
H6901Y Gelb 49,89 10,36
H6901F Fluoreszierendes Gelb 72,26 4,04
H6901NY Spezielles Gelb 54,16 2,68
H6901V Grün 24,22 3,74
H6901NV Spezielles Grün 18,46 3,15
H6901B Blau 18,77 1,79
H6901J Dunkelblau 14,86 3,49
H6901NB Spezielles Blau 5,95 4,34
H6901W Weiß 80,29 2,74
H6901D Schwarz / Gelb 2,35 / 49,89 2,13 / 7,82
H6901A Rot / Weiß 21,39 / 74 1,66 / 4,23
H6901E Schwarz / Weiß 2,83 / 80,38 1,81 / 2,3
